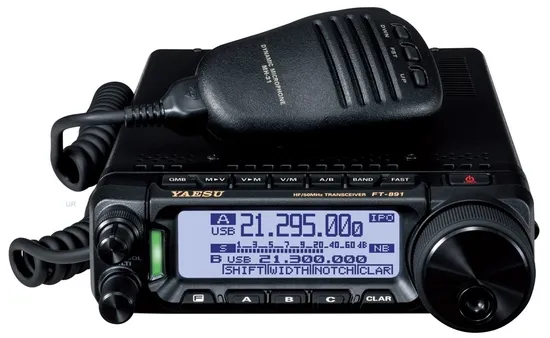

Radio Yaesu FT-891 Digital
Disponível desde 12 de Agosto de 2017
Última listagem em 20 de Abril de 2024
código: #2565488777
Por:
US$ 925,00
R$ 4.874,75
$ 1.036.000,00
* Os preços e a disponibilidade estão
sujeitos a alterações sem aviso prévio.
Informar preço incorreto ou indisponibilidade
DETALHES DO PRODUTO
| INFORMAÇÕES BÁSICAS | |
|---|---|
| Marca | Yaesu |
INFORMAÇÕES DO PRODUTO
Frequency Range: Tx: 1.8 – 54 MHz (Amateur Bands Only) Rx: 30 KHz – 56 MHz
Channel Step: 2/5/10 Hz (SSB, CW), 10/100 Hz (AM,FM)
Frequency Stability: +/- 0.5 ppm 14 °F to + 122 °F (-10 °C to +50 °C)
Modes of Emission: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM)
Impedance: 50 Ohms, unbalanced
Supply Voltage: 13.8VDC +/- 15%, negative ground
Current Consumption: Rx: 2.0 A (Signal Present) Tx: 23 A
Operating Tempature Range: 14 °F to ° +122 °F (-10 °C to +50 °C)
Case Size (WxHxD): 6.1” x 2.0” x 8.6” (155 x 52 x 218 mm) w/o Knobs
Weight (Approx.): 4.18 lb (1.9 kg)
Output Power: 100W SSB/CW/FM (AM: 25W)
Circuit Type: SSB/CW/AM: Triple-conversion Super-heterodyne FM: Double Conversion Super-heterodyne
Intermediate Frequencies: 1st: 69.450 MHz / 2nd: 450 KHz
Maximum AF Output: 2.5 W 4 ohmz with 10% THD
Audio output Impedance: 4 to 16 Ohms (8 Ohms nominal)
Sensitivity: SSB/CW (S/N 10dB) 0.158uV (1.8 - 30 MHz), 0.125uV (50 -54 MHz)
AM (S/N 10 dB) 4 uV (0.5 – 1.8 MHz), 1.6uV (1.8 – 30 MHz), 1.2uV (50 – 54 MHz)
FM (12 dB SINAD) 0.35uV (29, 50 – 54 MHz)
Channel Step: 2/5/10 Hz (SSB, CW), 10/100 Hz (AM,FM)
Frequency Stability: +/- 0.5 ppm 14 °F to + 122 °F (-10 °C to +50 °C)
Modes of Emission: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM)
Impedance: 50 Ohms, unbalanced
Supply Voltage: 13.8VDC +/- 15%, negative ground
Current Consumption: Rx: 2.0 A (Signal Present) Tx: 23 A
Operating Tempature Range: 14 °F to ° +122 °F (-10 °C to +50 °C)
Case Size (WxHxD): 6.1” x 2.0” x 8.6” (155 x 52 x 218 mm) w/o Knobs
Weight (Approx.): 4.18 lb (1.9 kg)
Output Power: 100W SSB/CW/FM (AM: 25W)
Circuit Type: SSB/CW/AM: Triple-conversion Super-heterodyne FM: Double Conversion Super-heterodyne
Intermediate Frequencies: 1st: 69.450 MHz / 2nd: 450 KHz
Maximum AF Output: 2.5 W 4 ohmz with 10% THD
Audio output Impedance: 4 to 16 Ohms (8 Ohms nominal)
Sensitivity: SSB/CW (S/N 10dB) 0.158uV (1.8 - 30 MHz), 0.125uV (50 -54 MHz)
AM (S/N 10 dB) 4 uV (0.5 – 1.8 MHz), 1.6uV (1.8 – 30 MHz), 1.2uV (50 – 54 MHz)
FM (12 dB SINAD) 0.35uV (29, 50 – 54 MHz)
